TwigaInsul is selected by nine out of ten sound spaces for its superior acoustic and thermal insulation properties. TwigaInsul is available in a wide range of densities, thicknesses, lengths and aesthetics.

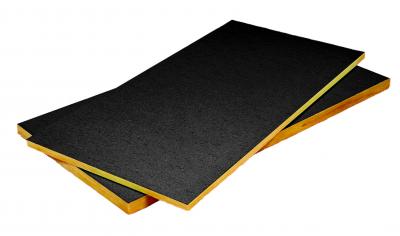

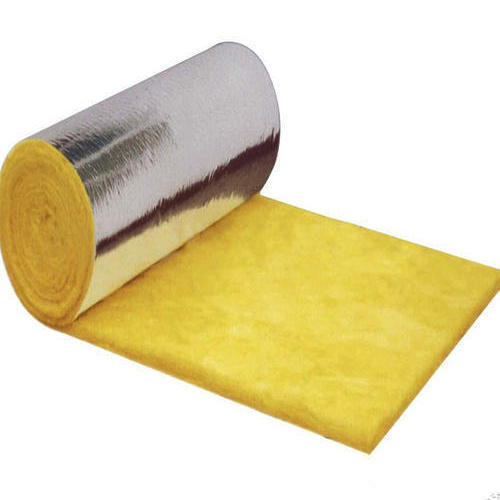

Insul having density of 16 kg/m3 to 32 kg/m3 rolls / 40 kg/m3 to 64 kg/m3 boards can be used with either black glass tissue, white fiber glass tissue or black glass cloth facings and for ceiling, Insul Boards / Tiles with a density of 100 kg/m3 can be used to improve acoustics apart from being fire safe and easy to install.

We recommend following glasswool as per dimension of the theater,

• 48 Kg/M3 Fiberglass of 50 mm thickness in Board Form
• 48 Kg/M3 Fiberglass of 50 mm thickness in Roll Form
• 24 Kg/M3 Fiberglass of 50 mm thickness in Roll Form

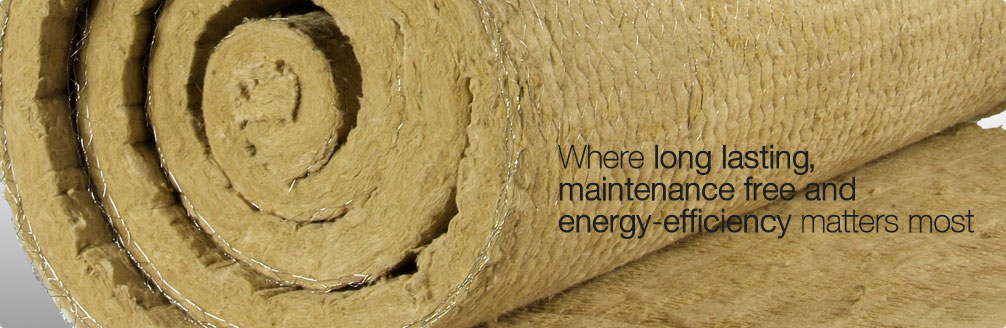

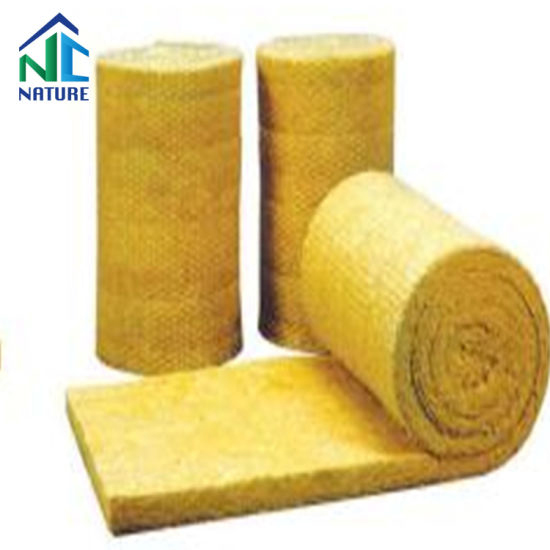

ROCKINSUL LRB Mattresses are flexible rock fiber mattresses, stitched with wire mesh and manufactured from stable rock fibers bonded with a minimum quantity of thermosetting resin binder. ROCKINSUL LRB Mattresses are light weight, strong, resilient, easy to handle and cut to suit intricate shapes.

FACING TYPES :

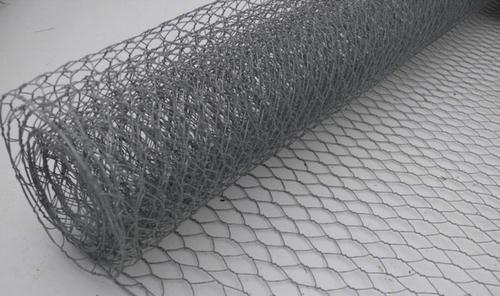

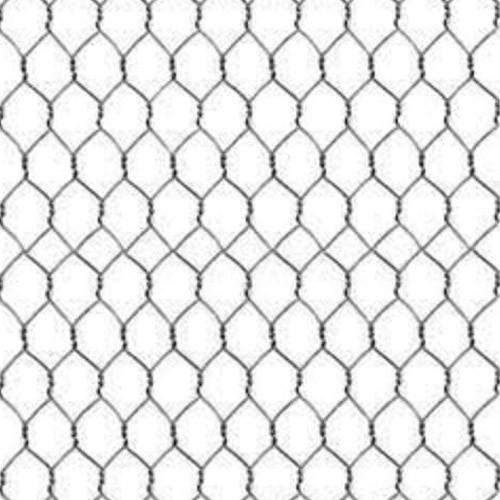

ROCKINSUL LRB Mattresses are available with a galvanized steel or stainless steel hexagonal wire netting (mesh) on one or two sides.

WORKING TEMPERATURE :

Up to 750 °C

• Class I surface spread of flame in accordance to BS 476 (part 7)
• Class 0 in accordance to the BS 476 (part 6 & 7) and to British Building Regulations
• Class A1 in accordance with European norms
• Show loss in total mass less than 5% when tested in accordance to IS 3144
• Surface burning characteristics in accordance to ASTM E84
  a: Fire Spread Index: Less than 25
  b: Smoke Developed Index: Less than 50

STANDARD DIMENSIONS

STANDARD DENSITY

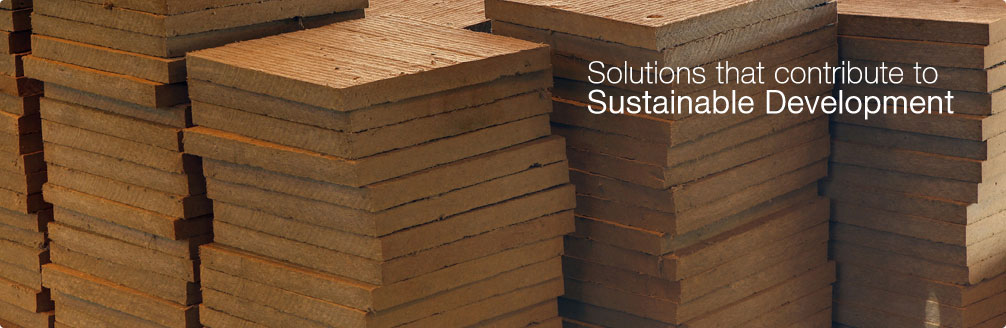

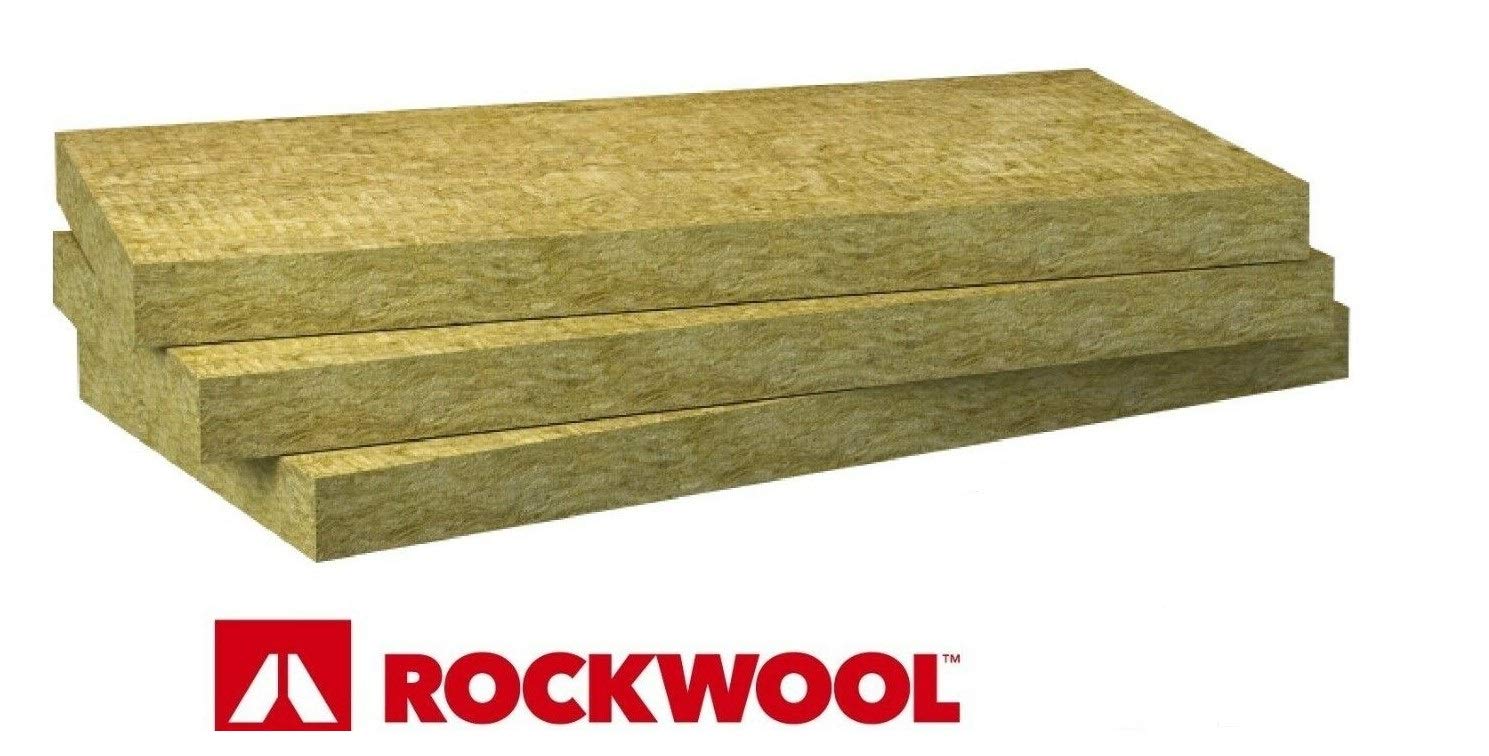

TUFFINSUL Rigid Slabs range offers superior rigidity and durability for application areas where high levels of compressive strength are required.

FACING TYPES :

TUFFINSUL Rigid Slabs for building applications are unfaced, or with a facing of glass reinforced aluminium foil / Kraft paper laminate (FSK), ALG and Black Glass Tissue (BGT).

WORKING TEMPERATURE :

Fiber : Up to 750 °C

Facing : 100 °C

At temperatures in excess of 230 °C a limited migration of binder may occur in the insulation in contact with the hot face. This does not impair the insulation performance.

MOISTURE ABSORPTION PERFORMANCE

TUFFINSUL Rigid Slabs absorb less than 1% by volume when tested in accordance with BS 2972, ASTM C1104 / 1104 M, and do not absorb moisture from ambient air or from water by capillary action. Only water under pressure can enter into stone wool insulation products; however, it quickly dries out due to the open cell structure of Rigid Slabs. When tested in accordance to ASTM E96, FSK-faced Rigid Slabs achieve water vapour permeability of ≤ 0.02 perm, ALG-faced Rigid Slabs achieve zero water vapour permeability.

APPLICATIONS

TUFFINSUL Rigid Slabs are used for thermal and acoustic insulation where high compressive strength is required such as over-deck, floors, sandwich panels, and dry wall partitions.

STANDARD DIMENSIONS

The following table compares the compression strength of Rigid Slabs vs. Regular Slabs.

STANDARD DENSITY

* Non-standardized sizes and facing may be available on request

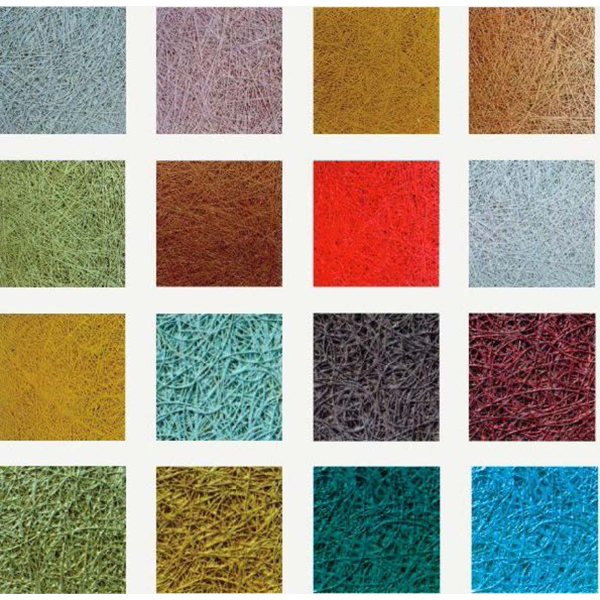

Woodwool Insulation Board

We supply natural panels are extensively used material in roof insulation, false ceiling, wall panelling, partitions, flooring both for thermal as well as acoustic insulation. The raw materials wood fibers and magnetise gives off white colour to natural panels, although they can be spray painted with other colours as well. Our natural panels are available in 5 densities & 10 thickness from 6 mm, which is the thinnest wood wool insulation slab.

We recommend Woodwool size will be 15mm, 20mm and 25mm as per theater.

Polyster Acoustic Products

ACOUSTIC PRODUCTS Range of 100 % polyester acoustic insulation products for ceiling, walls and floors.

Acoustic polyester wadding is thermally bonded insulation Materials manufactured from polyester fibre.

Features and Benefits

1. Polyester Wadding will not settle or reduce its performance over time(50Years durability Warranty) and is not affected by moisture, mould or mildew, and is naturally resistance to insect and vermin attack.

2. Polyester Acoustic products are completely safe and user-friendly so no protective clothing is required to handle or install the product.

3. Polyester Acoustic Products contains 45-85 % previously recycled polyester fibre ( from PET Plastic ) and is reusable and recyclable at end of life – supporting the philosophies of Environmentally Sustainable Design (ESD)

Polyester Acoustic Wadding

Thermal Bonded Polyester used for Acoustic Application.we have the following Sizes,

1. 500 Gsm - 50 mm Thickness
2. 500 Gsm - 25 mm Thickness
3. 1000 Gsm - 50 mm Thickness
4. 1000 Gsm - 25 mm Thickness

Fabric Wrapped Acoustic Panels, Fabric Cover Acoustical Wall Tiles Manufacturer in a Variety of Colors.

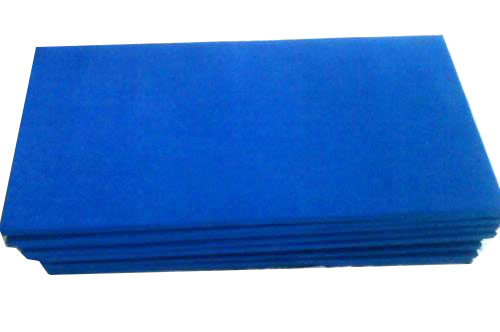

Prefabricated fabric wrapped acoustic panels are the ideal economical solution for treating noisy reverberant spaces. With a wide array of fabric selections, edge details, and finishes, fabric wrapped acoustic panels offer both aesthetic versatility and acoustic performance, making them visually appealing as well as functional. Fabric wrapped acoustic panels can be used on both walls and ceilings in the form of flat panels, curved panels, clouds, and baffles. Today's modern CNC technology allows for fabric wrapped acoustic panels to be cut precisely into various shapes and sizes, allowing for unlimited creativity and design

These tiles are lightweight and can be fix directly on walls, easy to integrate with existing design plans. The wall panels are Impact resistant and rigid; the panels are designed to resist reactivity to seasonal changes in temperature or humidity, making them ideal for use in any interior space.

If you are looking for an easy way to finish your/ Mini cinema/ home theatre these can be hang like pictures with adhesive to make permanent fix.

Features

• Available in custom sizes, shape and edge details
• Reduced Noise & Reverberation
• Architecturally Decorative
• High Performance
• class A Fire Retardant
• Economical and versatile
• Wide array of fabric sections
• Provides superior Acoustic Absorption
• 600x600mm,600x1200mm etc.
• Thin 25mm, decorative, cost-effective panels

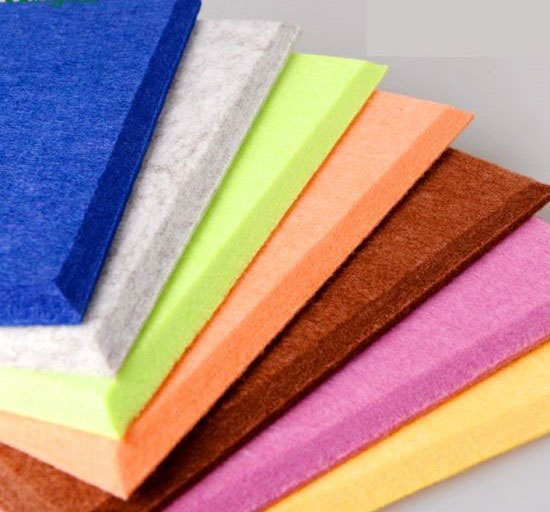

Composition : 100% Polyester Fiber (PET)

Panel Dimensions : 2440*1220mm or other Custom size

Thickness : (+/– 10%) 9mm and 12mm color in stock or 3mm.5mm.15mm,20mm.24mm.48mm

1100g/sqm(220kg/m3) density for 5mm PET panel

1500g/sqm(167kg/m3). 1900g/sqm(211kg/m3) for 9mm.

2300g/sqm(190kg/m3) for 12mm

2400g/sqm(160kg/m3) for 15mm polyester fiber acoustic panel

3200g/sqm(160kg/m3) for 20mm polyester fiber acoustic panel

3200g/sqm(134kg/m3) for 24mm polyester fiber acoustic panel

Environmental

Prime Acoustic products contain a minimum of 75% previously recycled polyester fiber (from PET bottleflake), ensuring comparatively low embodied energy.

Off-cuts and manufacturing waste is re-used or recycled wherever possible.Uncontaminated polyester fiber panel can be recycled.

Prime Acoustic polyester fiber acoustic panel is manufactured from 100% polyester fibers and does not contain chemical binders including formaldehyde.

Prime Acoustic polyester fibers support safer indoor air quality and will not become a potential airborne pollutant

Prime Acoustic polyester fiber acoustic panel is manufactured from 100% polyester fibers and does not contain chemical binders including formaldehyde.

Prime Acoustic polyester fibers support safer indoor air quality and will not become a potential airborne pollutant.

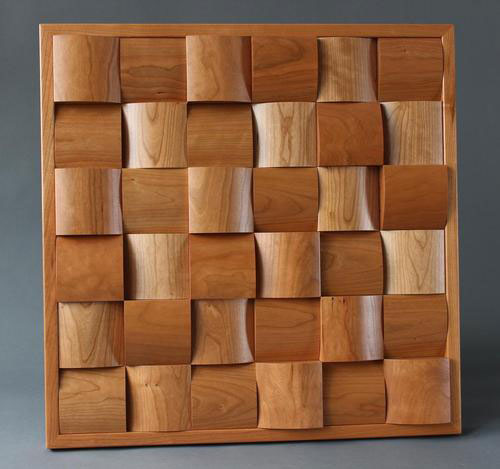

Diffusor

Diffusion is a great way to retain some “live” feel in a room while helping to randomly scatter mid to high frequencies. While Diffusion is an important piece of acoustical treatment, make sure to complete your treatment plan by also including our Absorption, Bass Trapping, and ISO Series® Isolation products in order to maximize the effectiveness of your total treatment system.

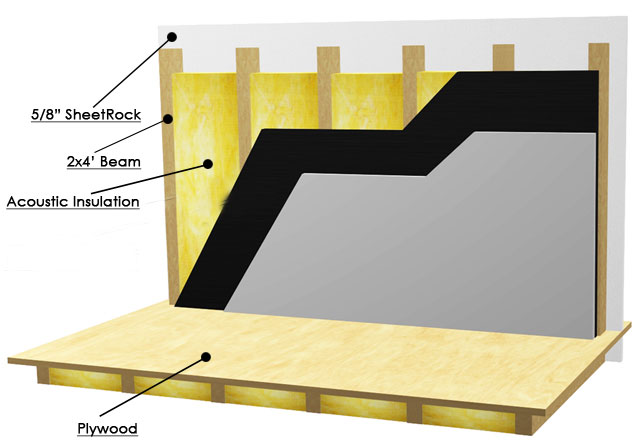

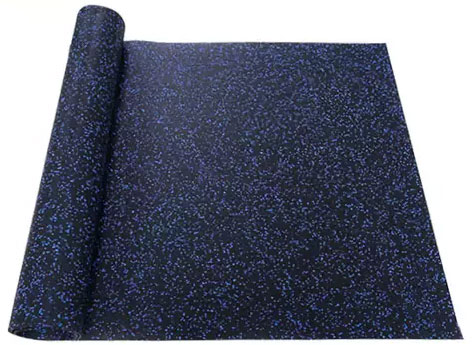

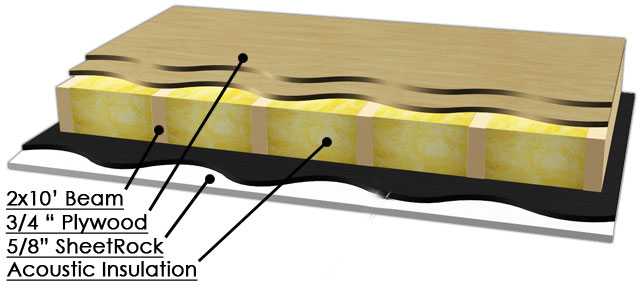

Mass Loaded Vinyl Barrier is used to reduce airborne sound transmission through walls, floors and ceilings. They are typically comprised of a limp-mass material sound barrier made of high-temperature fused vinyl and no lead fillers. With a typical weight of 1667kg/m3, these barriers are as heavy as Stone, but only 3mm or 2mm thick. This improves the sound transmission loss (STC) of a construction assembly without losing valuable space. It may be used in new and retrofit soundproofing construction. The standard offering is a non-reinforced barrier for use in typical construction. Other configurations include lag and wrap materials for pipes and ducting, a transparent version to allow line of site or light, a surface mount option and a reinforced version that may be suspended. These materials are often combined with other materials in soundproofing applications to help provide a complete sound blocking solution.

Soundproofing is a very tough task that is made very easy with Mass Loaded Vinyl. MLV is the perfect material for use as a sound barrier on walls and ceilings. Mass loaded vinyl is a thin but super dense rubberlike material. It is flexible and heavy which makes it work great for all soundproofing applications. It is non toxic and is the best alternative to Lead materials for soundproofing.

MLV adds great STC values to any wall or ceiling by adding heavy mass. It is great for blocking frequencies from 4000 hz all the way down to 125 hz. Please note that because MLV is so heavy shipping gets pretty expensive. For larger quantities, please call us for a freight rate quote.

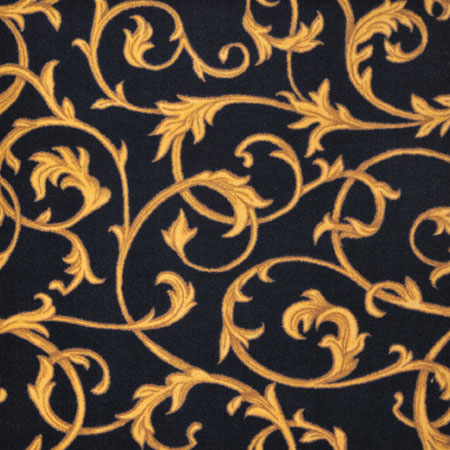

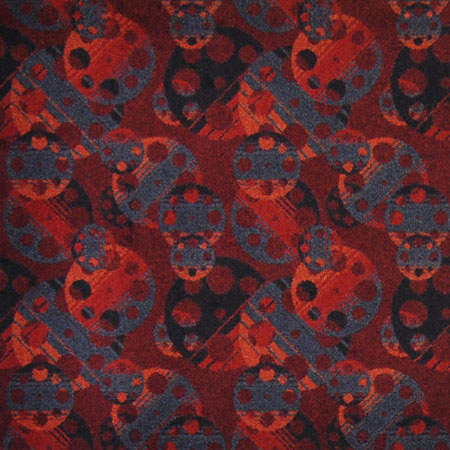

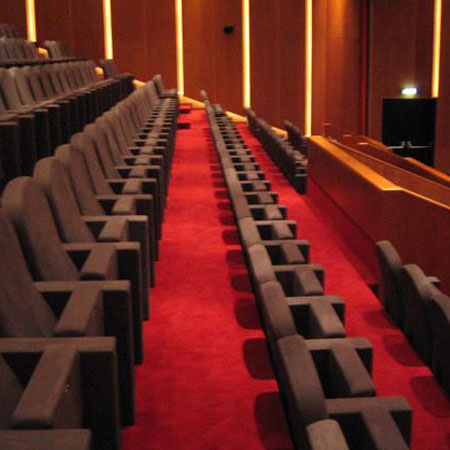

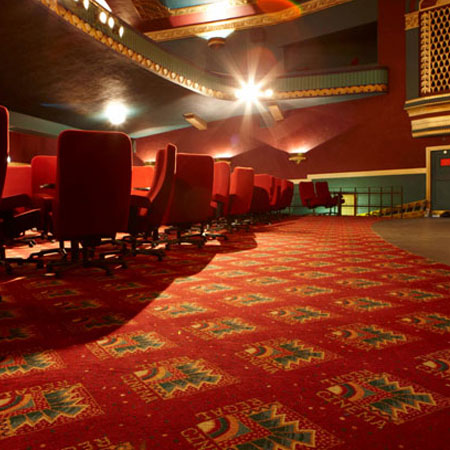

As per customer requirement we supply wall, flooring Indian and Imported carpet based on 6mm, 8mm, 10mm & 12mm.
