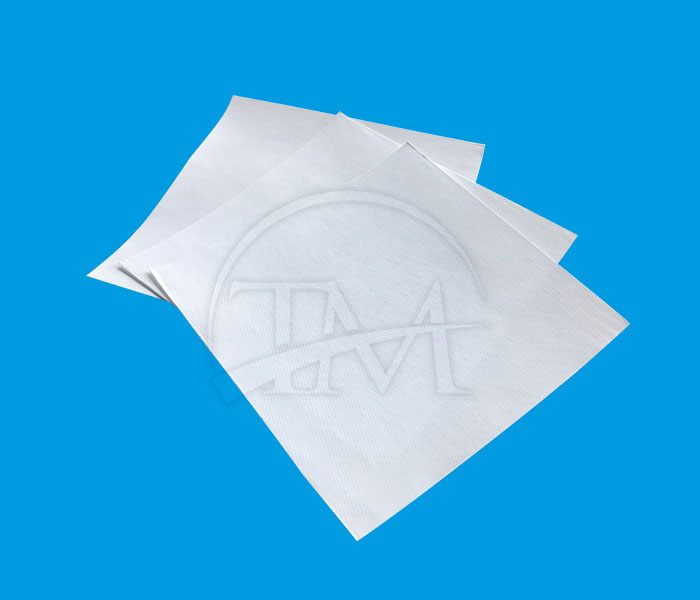

Aerogel fiber glass blanket with fiber cloth is a nanometer with extremely high thermal insulation properties, which is obtained by compounding aerogel powder with nanoporous network structure and glass fiber cloth with excellent gas permeability (also can be attached to non-woven fabric). Composite materials, which have higher insulation properties than traditional insulation materials. At room temperature (25 ℃), the thermal conductivity of our Aerogel fiber glass insulation blanket with fiber cloth is not higher than 0.026 W / m • k. The fiberglass cloth is very good at preventing the aerogel powder from overflowing. The cloth does not contain harmful substances to the human body, has the characteristics of washing resistance, excellent thermal insulation performance and strong plasticity, so the heat insulating material can be used in the field of daily heat preservation.
Tradematt Aerogel Blanket is one flagship product of our company. It is made by compounding Silica aerogel and fiberglass as the basal.
Thickness: 3mm, 6mm, 10mm
Width: 1400mm; 1500mm
Length: 24m, 36m,50m; 28m,40m,60m
Density: 200±20Kg/m³
Thermal: ≤ 0.016W/(m.k)
Descriptions:
Aerogel fiberglass insulation blanket is one flagship product of our company. It is made by compounding Silica aerogel and fiberglass as the basal. It has excellent insulation property, surface hydrophobicity and flame retardant property. Its thermal conductivity coefficient at the normal temperature is about 0.016W(m.k), which is lower than still air. And its hydrophobic rate can reach 99% under normal temperature. It also has excellent flame retardant performance, the fire rate meets the National Standard A1 level. And its working temperature range is widely. Generally, it can work normally in -200℃-650℃ according to the different requirement. In addition, it is easy to cut and install at construction site.
Structure:
Insulation blanket unique process integrates aerogel into a fiber-batting reinforcement to create flexible, resilient, durable aerogel super thin felt with superior insulating properties. aerogel insulation blanket is mostwidely applied into electronic devices and other areas requiring effectivethermal insulation and tiny insulation space.
Features:

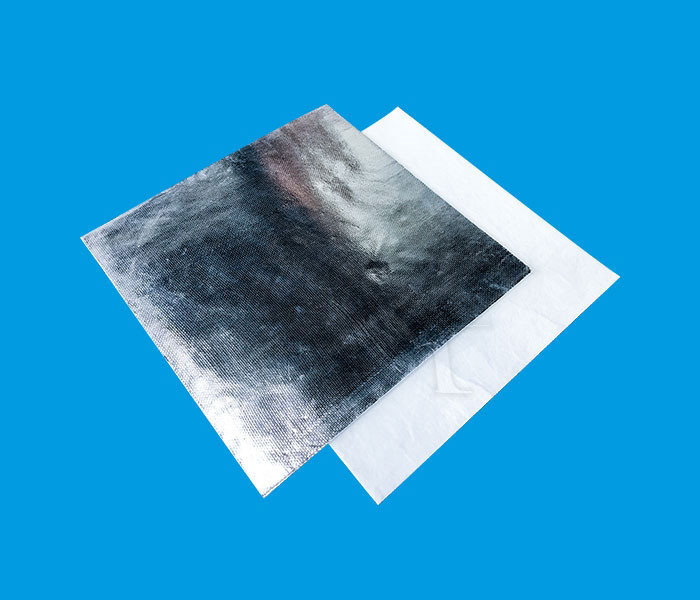

Aluminum Foil Aerogel Insulation Blanket is made from long special glass fiberaerogel blanket formed by special strong Industrial adhesives
Thickness : 3mm, 6mm, 10mm
Width : 1400mm; 1500mm Customizable
Length :24m 36m 50m; 28m 40m 60m
Density :200±20Kg/M³
Colour : White
Permitted useful Temperature Range :-200-600℃
Model : SACB-0-3, SACB-0-6, SACB-0-10
Descriptions:
Aluminum Foil Aerogel Insulation Blanket is made from long special glass fiber aerogel banket, formed by special strong Industrial adhesives ,increasing inter-weaving and tensile strength, so that Aluminum Foil Aerogel Insulation Blanket own good stability under any working temperature.
Typical Applications:
Features:

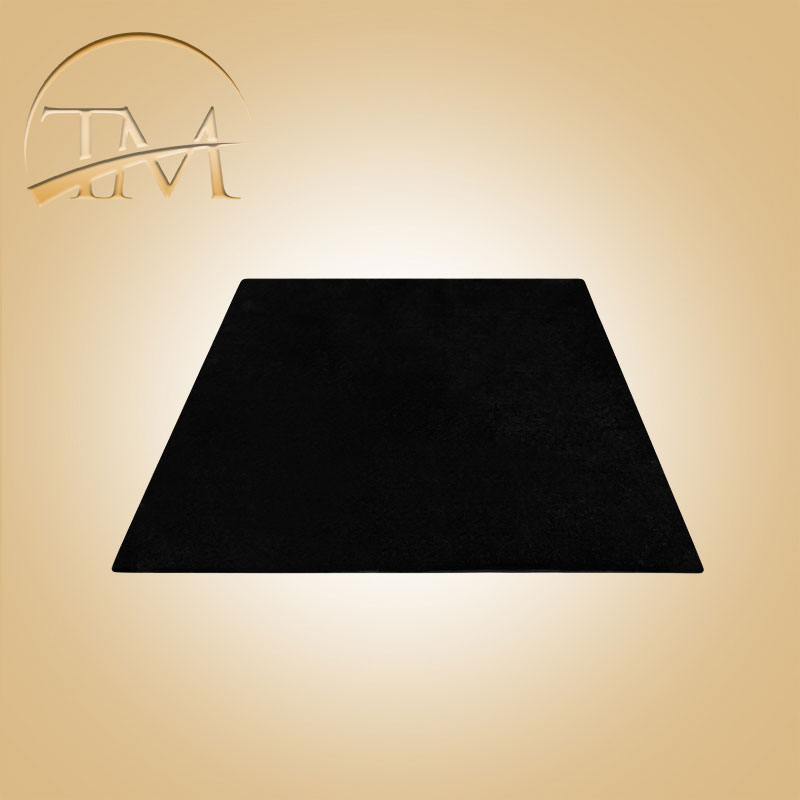

Tradematt Carbon Fiber Aerogel Insulation Blanket / Paper is the product that easiest to handle storage and install by far it has the industry's leading thermal performance and also a standard of roll
Thickness : 2mm, 3mm
Width : 1400mm; 1500mm
Density :200±20Kg/M³
Thermal conductivity: ≤ 0.02w/mk
Model: SACC-1-2,SACC-1-3
Descriptions:
Tradematt Carbon Fiber Aerogel Insulation Blanket / Paper is the product that easiest to handle, storage and install by far, it has the industry's leading thermal performance and also a standard of roll size and product form, which can greatly reduce the dust treatment work and simplifies installation and cleaning procedures. Tradematt aerogels are ideal insulation material for pipes, containers, tanks and equipment, Especially in the engine insulation and precision instrument insulation have unique advantages,it is an essential material to achieve optimum thermal efficiency.
Structure:
Aerogel is the smallest density solid of the world , the density is only 2.75 times as the air density. Aerogels can withstand 1200 degrees. Aerogels are nanostructured porous materials with low thermal conductivity, low refractive index, low elastic modulus, low density, low impedance, high temperature resistance, flame retardant and other good performance.
Features:

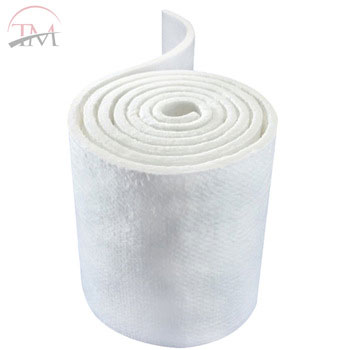

Aerogel ceramic fiber insulation blanket is produced by supercritical CO2 extraction which can be applied to petroleum and petrochemical metallurgy nuclear power kiln aerospace and some
Thickness : 10 mm
Width: 1220mm customizable
Permitted useful Temperature Range : 600-1000℃
Density : 180 ±20Kg/M³
Colour : White
Model: SACT-0-10
Burning Behaviour: A1 GB 8624-2012
Hydrophobic/Hydrophilic: Hydrophilic
Aerogel ceramic fiber insulation blanket is produced by supercritical CO2 extraction, which can be applied to petroleum and petrochemical, metallurgy, nuclear power, kiln, aerospace and some other fields. it is a revolutionary alternative to traditional insulation materials
White xps extruded polystyrene foam 100mm thickness rigid insulation Extruded Polystyrene, also named XPS Board is compounded by non-combustible board and flame retardant material XPS. Extruded Polystyrene is Rigid High Strength Polystyrene slabs used for Insulation of flat roofs, Floor, Structures, below ground, cavity walls , pitched roofs and Agricultural Buildings
Specification of white xps extruded polystyrene foam 100mm thickness rigid insulation
Largest width: 1200mm, adviced 1150mm, 1250mm or 1100mm
Length: 2400mm, 2700mm, 3000mm, 3600mm, option is available
Core Material: XPS,
Surface Material: Magnesium Oxide Board
Thickness: 20mm-100mm
Techology Data Sheet
| Density | kg/m3 | 31-50 |
| Thermal conditivity,90 days,10° | W/mk | 0.027-0.03 |
| Compressive strength at 10&% deflection or yield,(vertical) | kpa | ≥250 |
| Tensile strength | kpa | ≥250 |
| Water absorption | Vol-% | <=1.00% |
| Capillarity | nil | nil |
| Coefficient of linear thermal expansion | mm/mk | 0.07 |
XPS Features
Features of white xps extruded polystyrene foam 100mm thickness rigid insulation
Good performance of sound insulation and warm-keeping
Fireproof: good performance of fireproof board and flame retardant EPS
Green and environmental protection. There are two ways to compound, one is adhibited by itself, and another is compounded by glue. The former can assure 100% free of formaldehyde and benzene, and in the second way, we will adopt the glue according to the state technological standard to make sure it is environmental protection.
It is easy to construct, and can be combined discretionarily.The size and thickness can be customized. The installation can be finished in one time which can save the cost efficently.
Application of white xps extruded polystyrene foam 100mm thickness rigid insulation
